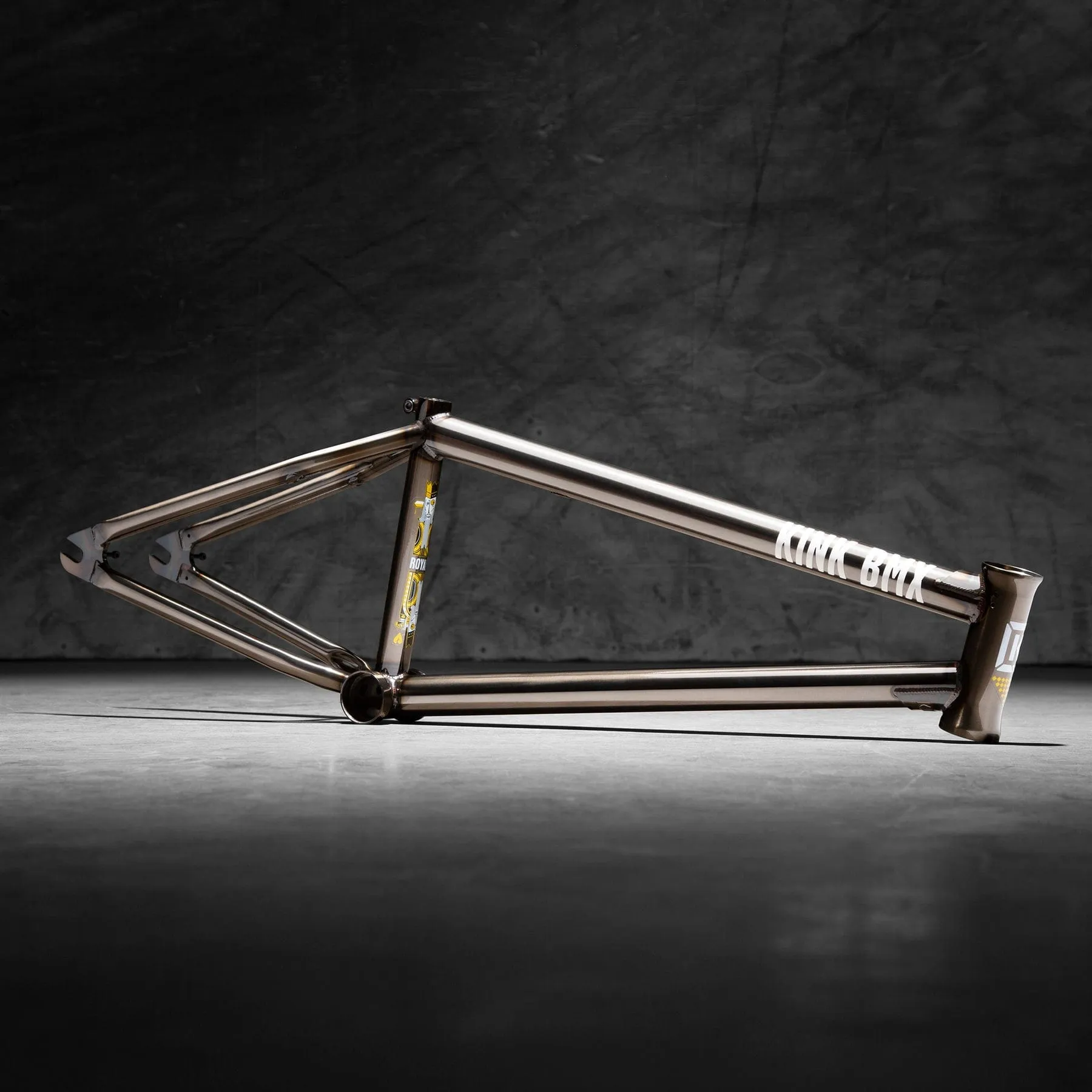

All street, all day. The Royale frame features progressive geometry throughout the design with premium grade materials and craftsmanship to back them up. A 76-degree headtube angle and 12.5” chainstay length make the Royale frame compact and responsive, ideal for modern day street and plaza riding. 100% 4130 chromoly tubing and both toptube and downtube gussets provide a ton of strength and stiffness. Custom interior chainstay forming provides tire clearance up to 2.55” and the seatstay bridge features a brass badge inlay. This frame comes standard with an integrated seat post clamp, integrated chain tensioners, and removable brake lugs for those looking to install brakes (mount kit sold separately).

TECH SPEC
Material 100% 4130 Chromoly Tubing
Headtube Integrated Campy Spec
Dropouts Laser cut with Integrated Chain Tensioners
Bottom Bracket Internally and Externally Machined Mid Size BB
Braking Removable Through-Bolt Brake Mount System (Hardware Not Included)
Particulars Toptube and Downtube Gussets
Integrated Seat Clamp
Interior Chainstay Forming for 2.55” Tire Clearance
CNC’d Seatstay Bridge with Kink Badge Inlay
Weight 5lb 4oz (20.5")

GEOMETRY
Toptube Sizes 20.5”, 20.75”, 21”, 21.25”
Chainstay Length 12.5" Slammed
Bottom Bracket Height 11.7"
Standover Height 9"
Headtube Angle 76°
Seattube Angle 71°
Headtube Height 5"
